Double Disc Automated Metallographic Grinding Polishing Machine iGrind-844S in Stepless Speed

Name: Double Disc Automated Metallographic Grinding Polishing Machine iGrind844S in Stepless Speed
Brand: iqualitrol
Price: 1 USD

Brand Name : iqualitrol

Model Number : iGrind-844S

MOQ : 1 Set

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 10 Working Days

Packaging Details : Plywood Pallet

IGrind-844S : Double Disc, Diameter 250mm

Sample Qty : 6pcs, Diameter 30mm

Polishing Head : Touch Screen, Can Set Program

Cooling Type : Water Cooling And Abrasive-flushing Nozzles

Structure : ABS Housing And Stainless-steel Components

Rotation Speed : 0–1000rpm, With An Adjustment Step 20rpm

Contact Now

Double Disc Automated

Metallographic Grinding Polishing Machine iGrind-844S in Stepless Speed

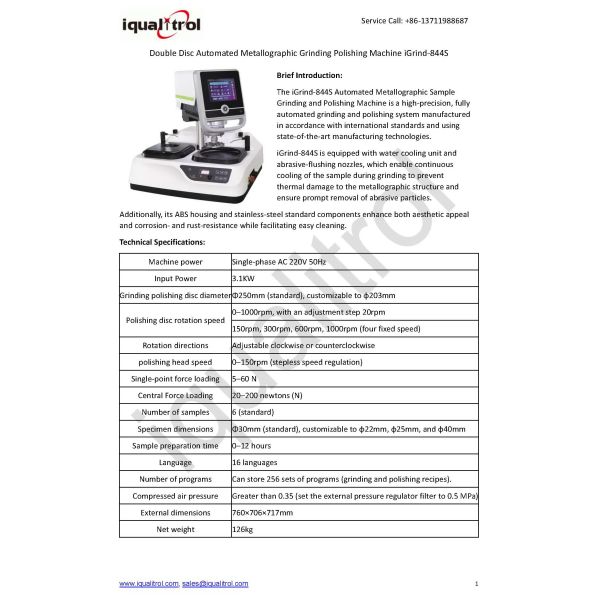

Download Technical Data: Grinding Polishing Machine iGrind-844S

Brief Introduction:

The iGrind-844S Automated Metallographic Sample Grinding and Polishing Machine is a high-precision, fully automated grinding and polishing system manufactured in accordance with international standards and using state-of-the-art manufacturing technologies.

iGrind-844S is equipped with water cooling unit and abrasive-flushing nozzles, which enable continuous cooling of the sample during grinding to prevent thermal damage to the metallographic structure and ensure prompt removal of abrasive particles.

Additionally, its ABS housing and stainless-steel standard components enhance both aesthetic appeal and corrosion- and rust-resistance while facilitating easy cleaning.

Technical Specifications:

Machine power	Single-phase AC 220V 50Hz
Input Power	3.1KW
Grinding polishing disc diameter	Φ250mm (standard), customizable to φ203mm
Polishing disc rotation speed	0–1000rpm, with an adjustment step 20rpm
Polishing disc rotation speed	150rpm, 300rpm, 600rpm, 1000rpm (four fixed speed)
Rotation directions	Adjustable clockwise or counterclockwise
polishing head speed	0–150rpm (stepless speed regulation)
Single-point force loading	5–60 N
Central Force Loading	20–200 newtons (N)
Number of samples	6 (standard)
Specimen dimensions	Φ30mm (standard), customizable to φ22mm, φ25mm, and φ40mm
Sample preparation time	0–12 hours
Language	16 languages
Number of programs	Can store 256 sets of programs (grinding and polishing recipes).
Compressed air pressure	Greater than 0.35MPA (set external pressure regulator filter to 0.5MPa)
External dimensions	760×706×717mm
Net weight	126kg
